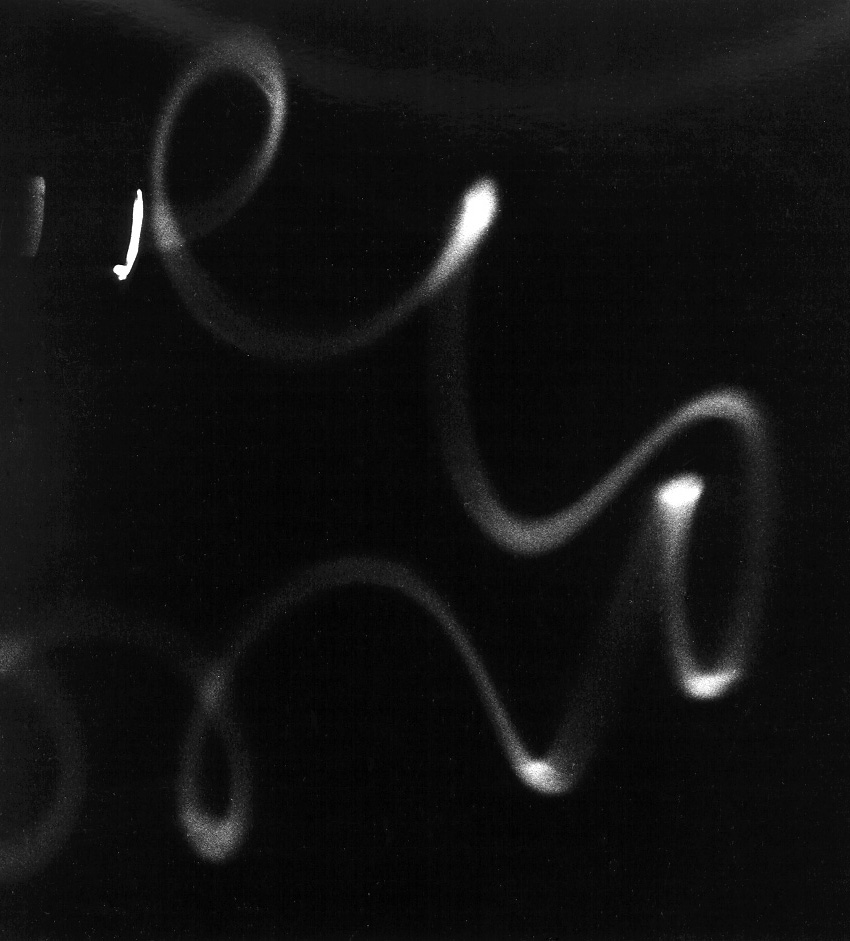

Fig. 9. Mirror reflection of a weak electron beam in a
nonuniform magnetic field. The beam is injected oblique to the
field lines which converge to the right. Due to the adiabatic
invariants (energy and magnetic moment) the parallel energy is
converted into perpendicular energy at which point the particles
reflect. Alternatively, the parallel motion is decelerated by
the repelling force of an increasing magnetic field.
